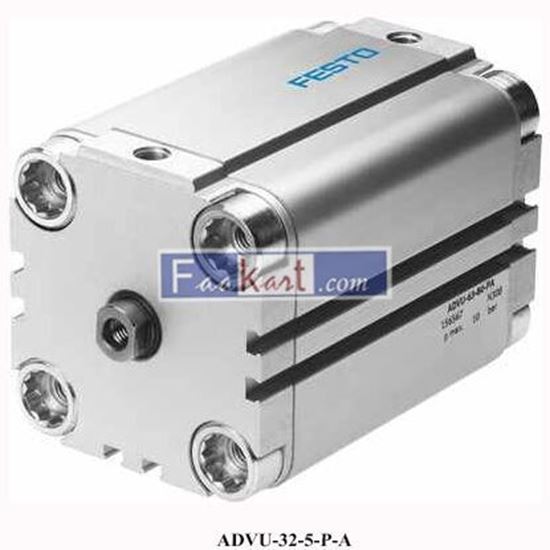

156530 FESTO ADVU-32-5-P-A Compact cylinder

Manufacturer: Festo

SKU: SHA3963

Old price: 300.00 (SAR)

Price: 245.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Stroke5 mm
Piston diameter32 mm
CushioningElastic cushioning rings/plates at both ends
Mounting positionoptional
Mode of operationDouble-acting
Piston-rod endFemale thread
DesignPiston Piston rod
Position detectionVia proximity switch
Symbol00991217
VariantsPiston rod at one end
Operating pressure0.08 MPa ... 1 MPa
Operating pressure0.8 bar ... 10 bar
Operating pressure11.6 psi ... 145 psi
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20 °C ... 80 °C
Impact energy in end positions0.4 J
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke483 N
Moving mass for 0 mm stroke49 g
Additional moving mass per 10 mm stroke9 g
Basic weight for 0 mm stroke300 g
Additional weight per 10 mm stroke40 g
Type of mountingEither: With through-hole With accessories
Pneumatic connectionG1/8
Material collar screwsGalvanised steel
Material coverWrought aluminium alloy
Material dynamic sealsNBR TPE-U(PU)
Material piston rodHigh-alloy stainless steel
Material cylinder barrelWrought aluminium alloy
