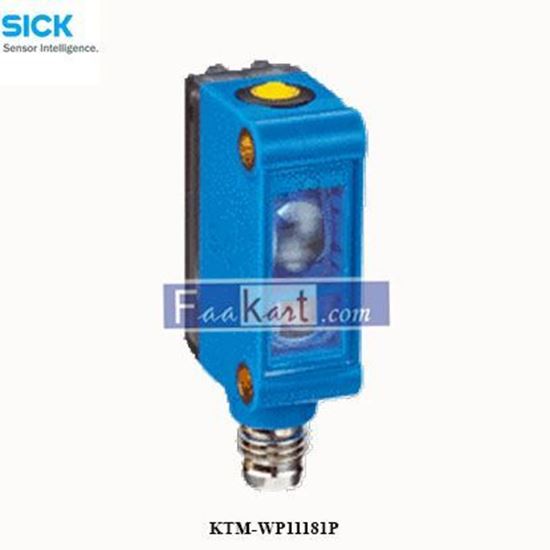

1062199 SICK Contrast sensors KTM-WP11181P

Manufacturer: Sick

SKU: PCM1074

Old price: 1,555.00 (SAR)

Price: 1,459.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Dimensions (W x H x D)	12 mm x 31.5 mm x 21 mm
Sensing distance	12.5 mm
Sensing distance tolerance	± 3 mm
Housing design (light emission)	Small
Light source	LED, RGB 1)
Wave length	470 nm, 525 nm, 625 nm
Light emission	Long side of housing
Light spot size	1.5 mm x 6.5 mm
Light spot direction	Vertical 2)
Receiving filters	None
Adjustment	Teach-in button
Teach-in mode	2-point teach-in static/dynamic + proximity to mark ET: Teach-in dynamic

Mechanics/electronics

Supply voltage	12 V DC ... 24 V DC 1)
Ripple	≤ 5 Vpp 2)
Current consumption	< 50 mA 3)
Switching frequency	15 kHz 4)
Response time	32 µs 5)
Jitter	15 µs
Switching output	PNP
Switching output (voltage)	PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V
Switching mode	Light/dark switching
Output current Imax.	50 mA 6)
Input, dynamic teach-in (ET)	PNP: Teach: U = 10,8 V ... < UV PNP: Run: U < 2 V or open
Retention time (ET)	28 ms, non-volatile memory
Time delay	None
Connection type	Male connector M8, 4-pin
Protection class	III
Circuit protection	UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Enclosure rating	IP67
Weight	20 g
Housing material	Plastic, ABS
Optics material	Plastic, PMMA
Indication	LED indicator green: power on LED indicator, yellow: Status switching output Q

1) Limit values: DC 12 V (–10 %) ... DC 24 V (+20 %). Operation in short-circuit protected network max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) With light/dark ratio 1:1.
5) Signal transit time with resistive load.
6) Total current of all Outputs.

Product tags

Item	Unit Price	Unit Tax	Subtotal	Action
1062199 SICK Contrast sensors KTM-WP11181P	1,459.00 (SAR)	218.85	1,677.85 (SAR)
			Shipping	0.00
			Total	1,677.85 (SAR)

Shipping Method

Full Name: *

Email: *

Country: *

Address 1:

Phone number:

Ambient operating temperature	–10 °C ... +55 °C
Ambient temperature, storage	–20 °C ... +75 °C
Shock load	According to IEC 60068
