0822120001 AVENTICS™ Profile cylinder PRA-DA-032-0025-0322111100000000000000-B

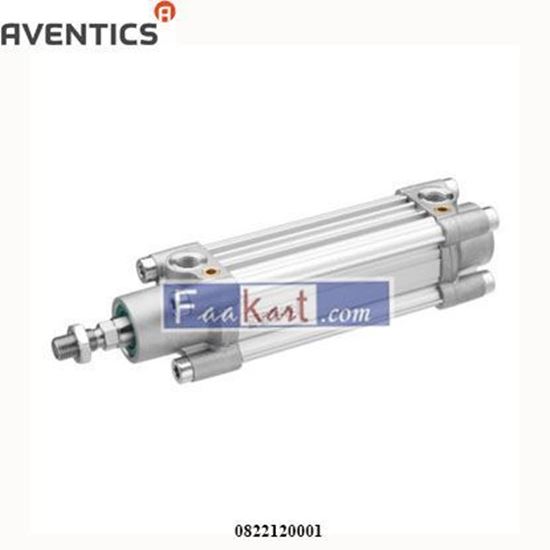

AVENTICS™ Profile cylinder ISO 15552, PRA series 0822120001

Be the first to review this product

Manufacturer: AVENTICS

SKU: PCM1713

Old price: 565.00 (SAR)

Price: 491.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Specifications

Standards: ISO 15552

Piston Ø: 32 mm

Stroke: 25 mm

Functional principle: Double-acting

Cushioning: Pneumatic adjustable cushioning

Magnetic piston: Piston with magnet

Environmental requirements: Industry standard, ATEX optional

Piston rod: single

Scraper: Standard Industry Scraper

Pressure for determining piston forces: 6,3 bar

Retracting piston force: 435 N

Extracting piston force: 505 N

Min. ambient temperature: -20 °C

Max. ambient temperature: 80 °C

Working pressure min.: 1.5 bar

Working pressure max: 10 bar

Ports: G 1/8

Piston rod thread: M10x1,25

Cushioning length: 16.5 mm

Cushioning energy: 4.8 J

Weight 0 mm stroke: 0.5 kg

Weight +10 mm stroke: 0.022 kg

Stroke max.: 1600 mm

Medium: Compressed air

Min. medium temperature: -20 °C

Features

6 mm T-slots and 4 mm C-slots allow for a large number of sensors to be mounted easily, quickly and compactly
Available in piston diameters from 32 mm to 125 mm
Modular sealing system allows for adaptability
Advanced pneumatic end position cushioning
Additional elastic damping elements
Wide range of variants and accessories available in the configurator
