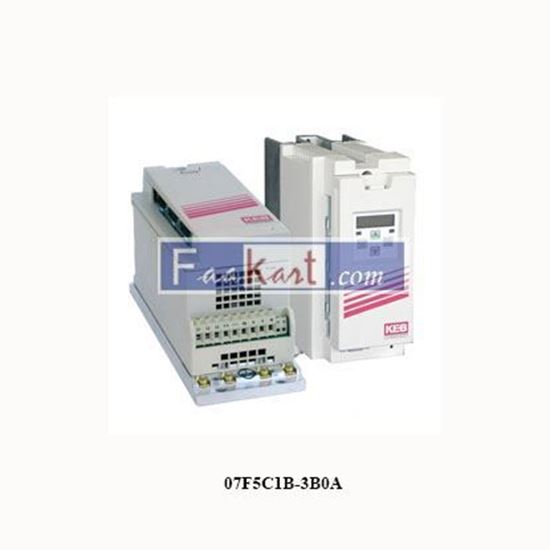

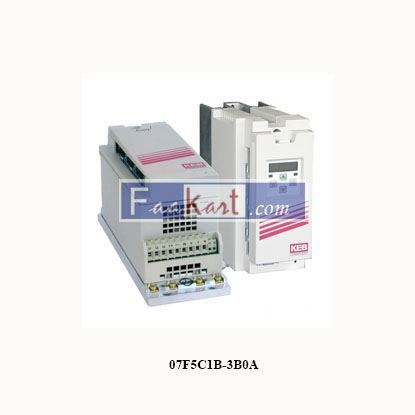

07F5C1B-3B0A KEB AUTOMATION KEB COMBIVERT DRIVES

KEB Combivert F5 Compact is part of universal line with extended I/O functionality up to 90 kW. High technology for open-loop drive systems.

• wide power range for 230 V and 400 V connection
• either AC or DC connection
• optimal characteristics at the motor shaft in diff erent application areas with KEB-SMM (sensorless motor management)
• 29 plug-in control terminals, PNP- / NPN logic switchable
• 2 analog inputs 0 … 10 V, ±10 V, 0 / 4 … 20 mA
• 2 programmable analog outputs 0 … ±10 V
• 8 programmable digital inputs
• programmable outputs: 2 x relay, 2 x transistor
• 4 programmable software inputs/outputs
• 8 free-programmable parameter sets including S-curves, ramp stop, power-off -function, DC-braking, PID controller, electronic motor protection, brake control, internal timer, counter input, output frequency 0 … 599 Hz, output voltage control, switching frequencies up to 16 kHz, output phase monitoring, energy saving function
• scan time of the control terminals in 2 ms-time pattern
• ± DC-link connection, motor-PTC monitoring, hardware current limit
• internal brake chopper (series up to housing size G, option from housing size H)
• controlled positioning to end position/counter pulse
• customized versions with output frequencies up to 1600 Hz
