WAGO

857-304 WAGO Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm; 2,50 mm²; gray

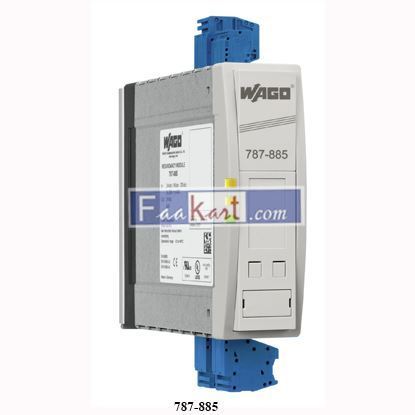

787-885 WAGO Redundancy module 2x20A 24V - DC-power supply Redundancy module 2x20A 24V - DC-power supply 787-885 – WAGO – 787-885 – 4045454909802: Voltage type of supply voltage=DC, 1st secondary output voltage=0,6 V, Max. output current 1=20 A, Max. output current 2=40 A, Secondary voltage adjustable=yes, Nominal value output voltage 1=24 V, Nominal value output current 1=20 A, Short-circuit-proof=no, Rated supply voltage at DC=18..30 V, Output voltage stabilized=no, Stabilized=no, Type of electric connection=Spring clamp connection, Rail mounting possible=yes, Wall mounting possible=no, Modular version=no, Width in number of modular spacings=3, Direct mounting possible=no, Width=40 mm, Height=163 mm, Depth=181 mm, Suitable for safety functions=no, Degree of protection (IP)=IP20

Relay module; Nominal input voltage: 115 V AC/DC; 1 changeover contact; Limiting continuous current: 6 A; Yellow status indicator; Module width: 6 mm; 2,50 mm²; gray

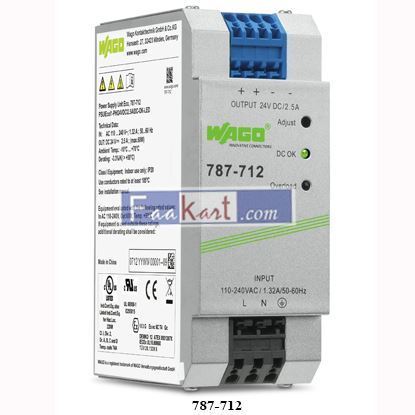

787-712 Power supply; Eco; 1-phase; 24 VDC output voltage; 2.5 A output current; DC-OK LED; 4,00 mm²

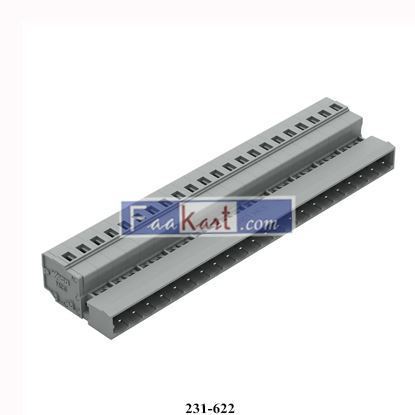

231-622 WAGO 1-conductor male connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 22-pole; 2,50 mm²; gray

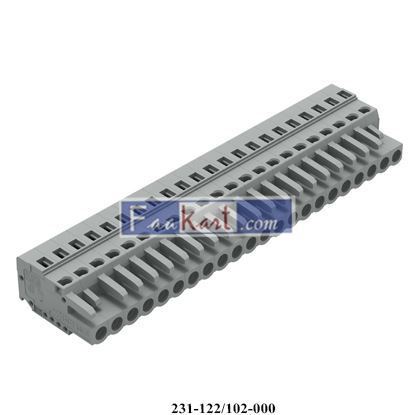

231-122/102-000 1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 22-pole; with integrated end plate; 2,50 mm²; gray
