VX5A1HC1316 SCHNEIDER ELECTRIC Inverter Power Board Supply

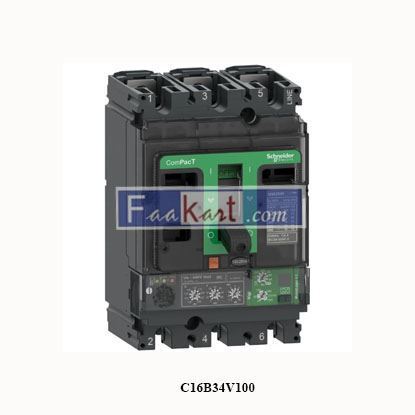

This ComPacT NSX160B is a complete 3P-3D fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (ICU) is 25 kA rms at 415 VAC, 50/60 Hz. The operational voltage is 440 VAC, 50/60 Hz. This product embeds a 100A rating electronic MicroLogic 4.2 Vigi trip unit with an integrated adjustable earth leakage protection. MicroLogic 4.2 Vigi also provides adjustable long-time and short-time protections and a fixed instantaneous protection. This 3-pole version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC, and marine specifications. ComPacT NSX160B is part of the Schneider Electric EcoStruxure Power architecture.

NSX1000 DC - TM-DC - 1000 A - 2P

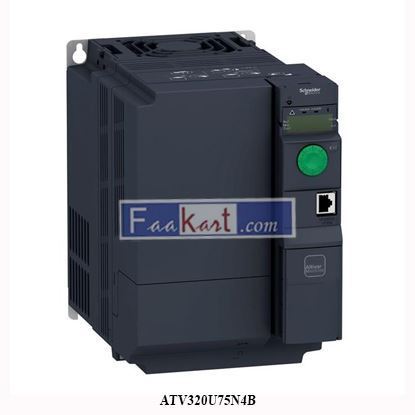

variable speed drive, Altivar Machine ATV320, 7.5kW, 380 to 500V, 3 phases, book

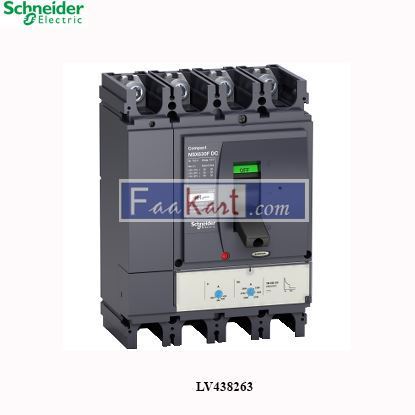

NSX600F DC, 36 kA at 750 VDC,TM-DC trip unit, 600 A rating, 4 poles

NSX 630F, 36 kA at 415 VAC, Micrologic 2.3 trip unit 630 A, add-on Vigi MB module, 3P 3d
