NSYCVF300M230PF Enclosure Cooling, Filter Fan with Outlet Grille, IP54, ClimaSys, ASA, Polycarbonate, 268 mm

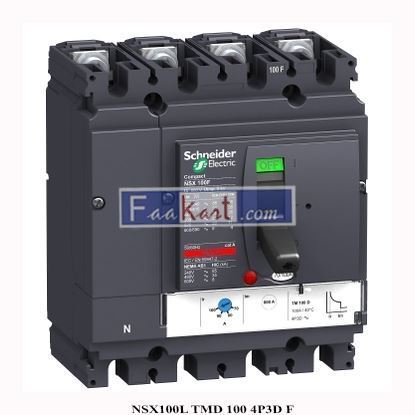

LV429640 -NSX100F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 100A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX100F is part of Schneider Electric EcoStruxure Power architecture.

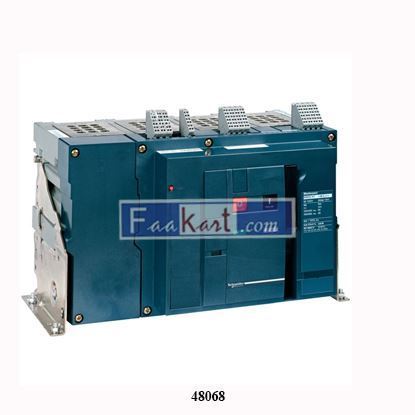

switch-disconnector Masterpact NW20HA - 2000 A - 690 V - 4 poles - fixed

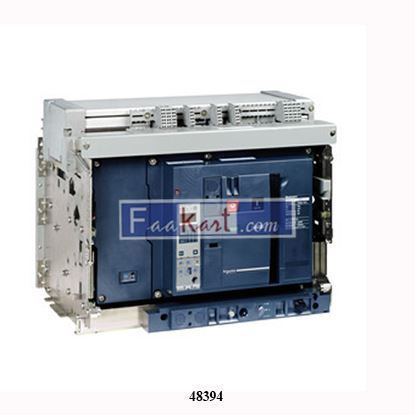

Chassis, MasterPact NW20 to NW25, drawout, 2000A-2500A, H type, 3 poles

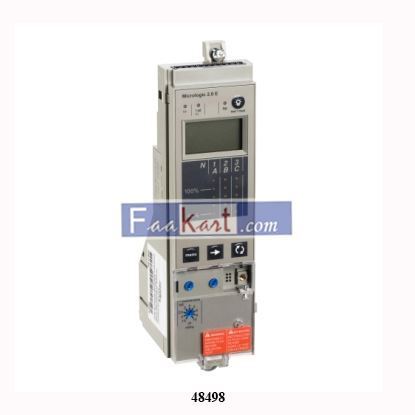

Control unit MicroLogic 2.0E, MasterPact NW drawout, basic protections (LI), energy meter

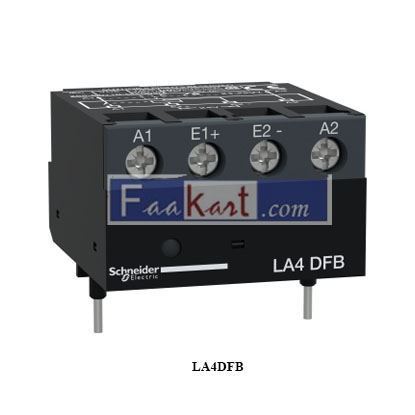

TeSys Deca, interface amplifier module, relay, 24V DC / 250V AC
