Products tagged with 'vigi add-on protection module'

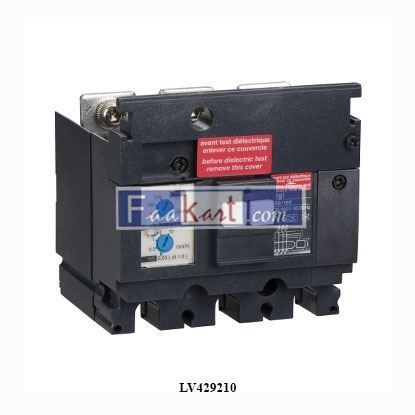

It is a MH Vigi add-on module for 3 poles Compact NSX 100/160 and EasyPact CVS 100/160. It provides an earth-leakage protection when installed directly on the device terminals. It directly actuates the trip unit in case of insulation fault. The addition of this Vigi add-on module does not modify Compact NSX 100/160 or EasyPact CVS 100/160 characteristics. It is a MH type module in 3 poles version, self-powered by the input voltage. The operational voltage for the Vigi add-on is from 200VAC to 440VAC 50/60Hz. The sensitivity is adjustable from 30mA to 10A, the time delay is also adjustable. The dimensions of the circuit breaker equipped with this module are 105mm x 236mm x 86mm.

Vigi add-on protection module, Compact NSX 100/160, EasyPact CVS 100/160, MH type, 200 VAC to 440 VAC, 30 mA to 10 A, 4P

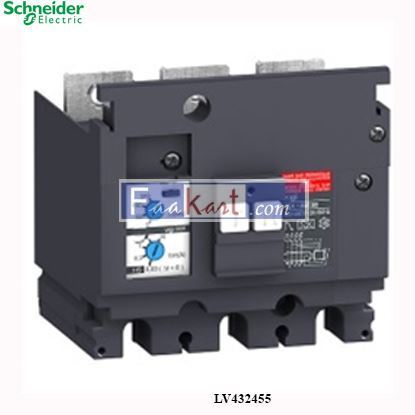

Vigi add-on protection module, Compact NSX 100/160, MH type, 440 VAC to 550 VAC, 30 mA to 10 A, 3 poles

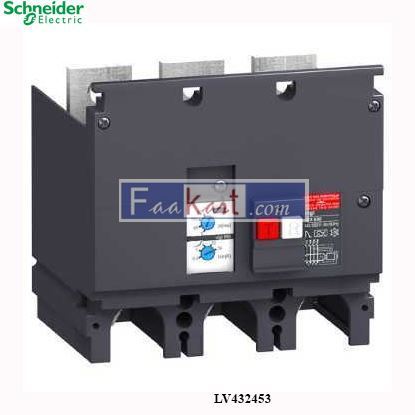

NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 3 poles

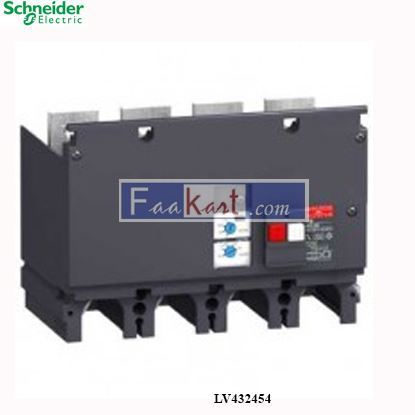

NSX 400/630, MB type, 440 VAC to 550 VAC, 300 mA to 30 A, 4 poles

NSX 400/630, EasyPact CVS 400/630, MB type, 200 to 440 VAC, 300 mA to 30 A, 3P
