Autonics

Display method : 4-digit 7-segment LED Operation method : Count up, Count down Terminal : 8-pin plug Power supply : 100-240VAC~ 50/60Hz External Power Supply : Max. 12VDC ±10% 50mA Control output_Relay : SPST (1a): 1 Protection structure : IP20(front panel)

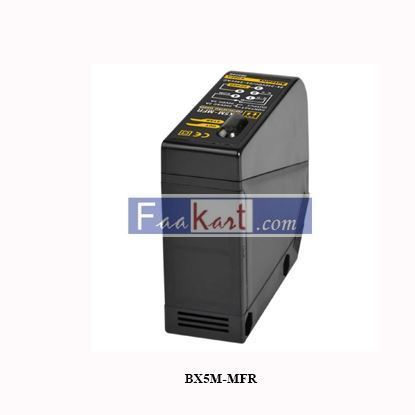

Autonics BX5M-MFR Sensor, Photo, Retroreflective, Light & Dark On, Relay Output, 24-240 VAC & VDC Photoelectric Sensor Type AC/DC both support (BEN) Sensing type Retroreflective Sensing distance 0.1 – 5 m Power supply 24 – 240 VDC Operation mode Light & Dark On Control output Relay contact output

Sensing type : Through-beam type Applicable pipe: Using binding band: Ø6 to 13mm, Using protection bracket: Ø12.7mm (1/2 inch) transparent pipe in 1mm thickness (FEP (fluoroplastic) or with equivalent transparency) Standard sensing target : Liquid in a pipe Light source : Infrared LED (950 nm) Response time : Max. 2ms Power supply : 12-24VDC ±10% (ripple P-P: max. 10%) Operation mode : Light ON/Dark on (set by button) Control output : PNP open collector

Display method : 4-digit, 7-segment LED Operation method : Counter: Count up, Count down, Count up/down Timer: Count up, Count down Terminal : Terminal block Output Operation : POWER ON DELAY, FLICKER Power supply : 100-240VAC~ 50/60Hz Control output_Relay : SPDT (1c): 1 Protection structure : IP20 (front panel)

Sensing side diameter : M12 Sensing distance : 4mm Installation : Non-flush Standard sensing target : 12×12×1mm (iron) Response frequency : 500 Hz

ensing side diameter : M12 Sensing distance : 2mm Installation : Flush Standard sensing target : 12×12×1mm (iron) Response frequency : 1.5 kHz
