Allen-Bradley

The 20G14NC170JN0NNNNN made by Allen Bradley comes with a kW rating of 90 kW. It has Ethernet included with the VFD. This PF755 variable frequency drive has the CM jumper on the drive. Additionally, this drive allows foran input of DC input and is powered on with 400 VAC or 540 VDC. This PowerFlex 750 (PF755) adjustable frequency drive comes with an amperage output rating of 170 A.

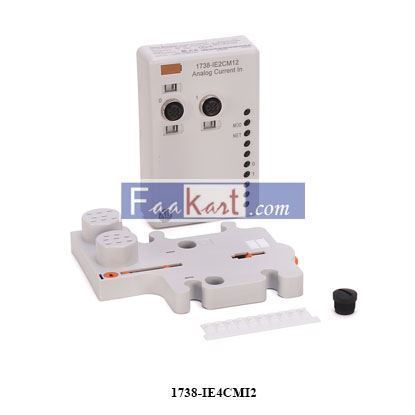

Input Module | ArmorPoint Termination Type: DC Micro (M12) , Input: , Signal Range: 4...20 mA 0...20 mA , Resolution Bit: 16 Bits-Over 21 mA 0.32 microA/cnt , Absolute Accuracy: 0.1% Full Scale @ 25 Degrees C , Input Step Response, Per Channel: 50 ms @ Notch = 60 Hz (Default) 60 ms @ Notch = 50 Hz 12.5 ms @ Notch = 240 Hz 6.25 ms @ Notch = 480 Hz , Input Conversion Type: Sigma Delta , Current: , POINTBus (mA): 75 , Eternal DC Power Supply: 15 mA @ 24V DC , Power Dissipation, Max.: 0.6 W @ 28.8V DC

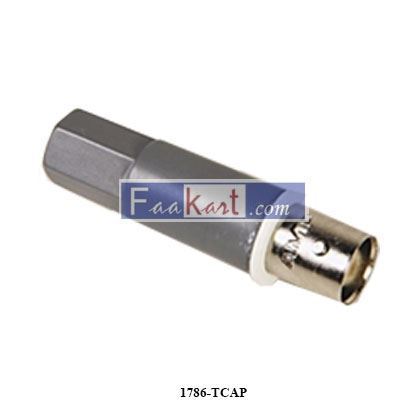

Allen-Bradley ControlNet™ 1786-TCAP Dummy Load Media Tap Coaxial Connector, BNC Connection

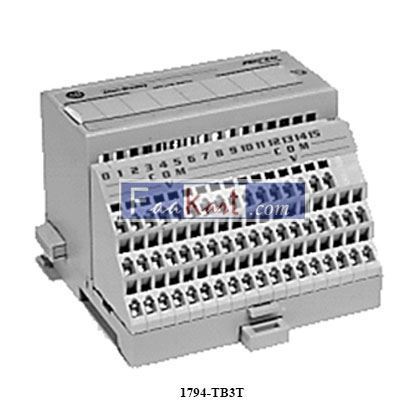

Allen-Bradley 1794-TB3T Flex I/O Terminal Base unit for Temperature Modules, 3-Wire screw, Cage Clamp

1794-IT8/A 1794-IT8A ALLEN BRADLEY Thermocouple Input Analog Module and RTD Module
