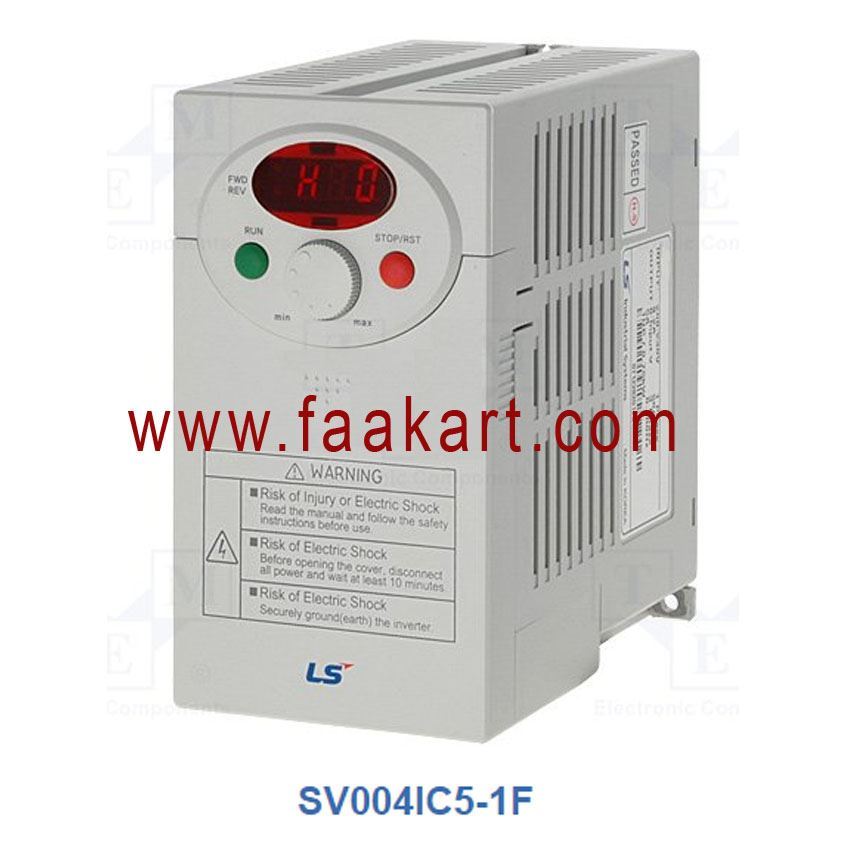

SV004IC5-1F - 0.37kW 230V AC Inverter Drive

LS Starvert iC5 0.37kW 230V 1ph to 3ph AC Inverter Drive, C3 EMC
Manufacturer: LS INDUSTRIAL SYSTEMS
SKU: SA-JED100
939.87 (QAR)
840.93 (QAR)
GET A QUOTE

Why to Shop at faakart.com

  • Standard Delivery*

    We provide standard delivery across the country.

  • Return Policy*

    We provide transparent return and exchange policy, please refer to terms and conditions for details.

  • 100% Genuine Products

    We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

LS Industrial Systems Starvert iC5 AC Frequency Inverter for 0.25kW (0.33HP) and 0.37kW (0.5HP) 230V 3 Ph motor in VxF or Sensorless Vector Control control to 2.5A. Simple to set-up and converts single phase 230V input to three phase 230V for a standard AC Induction motor.

Dimensions - 79mm Wide x 143mm Deep x 143mm high.

Overload - 150% x 60 seconds, 200% x 30 seconds.
Speed Control Range - 0-400Hz.
Braking - None.

Features - Integrated keypad with front-mounted Potentiometer, 1 x Analogue Input, 5 Digital Inputs, 1 x Analogue Output, 1 x Digital Output, 1 x Relay Contact set.
Parameter setting from a PC via DriveView software using optional Modbus card and suitable RS485 adapter - see linked products below.
EMC Filters to EN61800-3 to the 2nd Environment C3 (Industrial).

Input Current - 5.5A.
Input Voltage - 200-230V single phase +-10% at 50/60Hz +- 5%.

Wall mount in clean environment or cubicle mount.
Rated at 40C Ambient.
Ventilation space above and below - 100mm.
Ventilation space at sides - 50mm.
3 x screw fixings for rear mounting.
