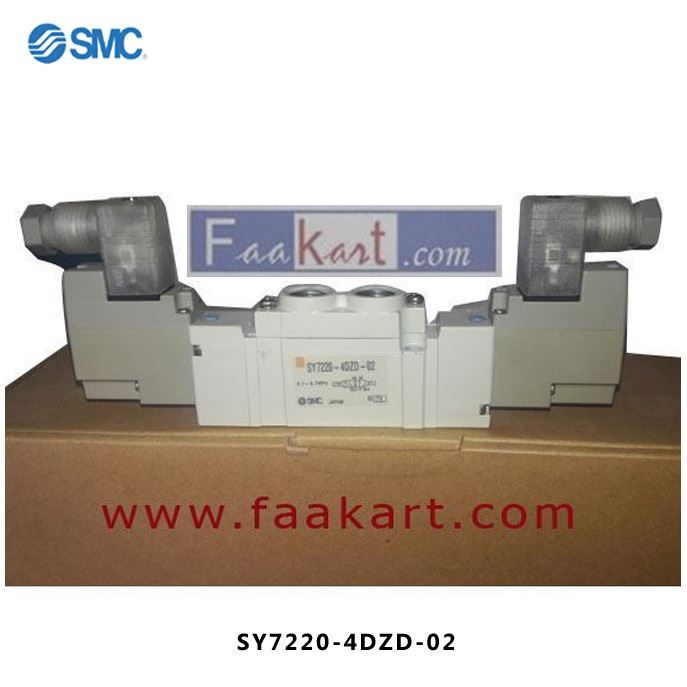

SY7220-4DZD-02 SMC Solenoid Valve

SMC SY7220-4DZD-02 Valve Series SY Subplate/Port Size Rc1/4 Products Structure 5 Port Body Ported Valve Option 2 Position Double Max.Operating Pressure 0.1 to 0.7 MPa Rated Voltage 220 VAC Electrical

Be the first to review this product

Manufacturer: SMC

SKU: SA-JED09

Download Product Catalog

Old price: 600.00 (SAR)

Price: 252.00 (SAR)

Qty: GET A QUOTE FOR THIS

Why to Shop at faakart.com

Standard Delivery*

We provide standard delivery across the country.
Return Policy*

We provide transparent return and exchange policy, please refer to terms and conditions for details.
100% Genuine Products

We do not sell anything which is counterfeited or tampered-with in manner, so you can be at ease that purchased product is 100% genuine.

Description

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

Fluid: air
Operating pressure range: (internal pilot) 0.1 - 0.7MPa
(external pilot) -100kPa to 0.7MPa
(external pilot, pilot pressure range) 0.25 - 0.7MPa
Effective area mm² (Cv): body ported 10.6 (0.59);
base mounted 12.6 (0.7)
Coil rated voltage: 3, 5, 6, 12, 24VDC;
100, 110, 200, 220VAC
Response time (0.5MPa) w/o indicator light andamp;
surge voltage suppressor: 32ms or less
Ambient andamp; fluid temperature: 50 C
